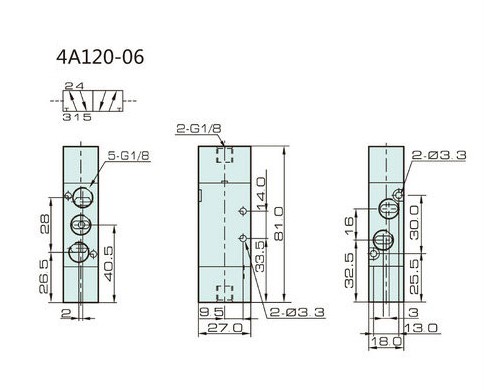

H.A.K. pneumatic (4-Way 2-Air Pilot) Valve, NPT 1/8” (4A120-06)

Parts

NumberNameNumberNameNumberName
1CROSS SLOT PAN SCREW7VALVE SPOOL13COIL
2BACK COVER8PISTON14COIL NUT
3SPRING9Y RING15FIX PLATE
4ANOMALOUS SEAL10SPRING16O RING
5VALVE BODY11MANUAL RIDE SPINDLE17PLUNGER
6FLAT RING12TERMINAL18PILOT SEAT

Specification

Model4A120-06
Valve Type5/2 way
Effective Cross Section Area12 mm² (CV = 0.67)
Port SizeInlet, Outlet, Exhaust Port = G 1/8″
Working Medium40 Micron Filtered Air
OperationInternal piloted
Working-pressure0.15~0.8 MPa
Max. Test Pressure1.2MPa
Ambient Temperature-20 ~ 70 ℃
Operating Voltage Tolerance± 10%
Power ConsumptionAC: 2.5VA DC: 2.5W
Connector ProtectionF Class, IP 65
Wiring / ConnectorCable / Lead Wire or DIN Connector
Switching Frequency5 Cycles / Sec.
Response Time0.05 Sec.

Learn More: 4A120-420 PILOT installation guide
